Outline

• Review
• JUnit Tests
• Javadoc
• Inheritance
• UML

Reminders

• The purpose of a class is to maintain the consistent state of its members.
• Public methods take an instance from one consistent state to the next.
• IS-A, HAS-A, RESPONDS-TO

• constructors: initialize a new instance public Balloon(){ }
• new and constructors new Balloon(); // create and initialize a new Balloon
• Can also have one constructor call another, see overloading below

• A Reference holds the address of an instance
• A reference is NOT the instance
• Speed Dial analogy (no Inheritence)
• The VALUE of a reference is the address it holds
• a=b calculated by computing the VALUE of the right side and placing it in the left
• Java is pass by VALUE
• Java occasionally garbage collects instances that have no references to them.

• many methods with the same name, different signatures
• Can overload methods /** * Inflate to capacity */ public void inflate(){ this.inflate(this.capacity-this.amount); } /** * inflate the specified amount */ public void inflate(int amount){ ... }
• overload constructors // initialize a default Balloon with capacity=10, colour="red" public Balloon(){ this(10,"red"); // must be first line in constructor } // initialize a Balloon with the specified capacity and colour public Balloon(int capacity, String colour){ ... }

• Rule of thumb: instance variables are private. Some methods are public.

• a tool for automatically generating documentation from well-commented source code
• Doc goes before method, or top of class.
• Use special /** */ comments
• Use special annotations @param, @return
• Example: /** * Add amount to this, if balloon exceeds capacity, then this is popped * * @param amount the amount to be added to this, must be positive * @return the amount actually added to this */ public int inflate(int amount) { ... }
• javadoc -d doc *.java
• Example: javadoc for Balloon
• Example: Java 22 API
• How to Write Doc Comments for the Javadoc Tool

• static things are part of the class not part of any instance
• one of each static thing for the class, no matter how many instances

• Search here (in this method)
• Search instance
• Search class (static)

• No modifier: here then instance then class: amount, amount could be a local
• this: instance then class: this.amount, amount could be an instance var or static var
• class name: class: Balloon.numCreated, static numCreated, on the bulletin board

• toString(): return a String representation of this

Unit Testing

• takes less time to unit test than to debug
• can make changes to code confidently, change and then test
• forces thought on inputs and outputs of code
• identifies location of problems should they arise
• TDD: Test driven development = write test cases first then code
• Motivating: Yes!! Green light!

JUnit

• Each method in a Unit Test can be labelled with @BeforeEach @BeforeAll, @Test, @AfterEach, @AfterAll
• Each Unit Test has many test cases, and for each test case:
• @BeforeEach: do some setup/prep work e.g., open a file, open a network connection.
• @Test: run the test case.
• @AfterEach: clean up after the test finishes, e.g., closing the file, close the connection.
• It's BTA, BTA, BTA, ... , not BTTTTTTTTA
• In total Ba (Be T Ae) (Be T Ae) (Be T Ae) (Be T Ae) Aa
• During a test, you make assertions
• Example: BalloonTest.java
• Additional Reading: junit.org, assertions

Inheritance in Java

• HAS-A instance variables
• RESPONDS-TO methods
• IS-A inheritance, extends public class Cat extends Animal { ... } // Cat is a subclass of Animal, child class // Animal is the superclass of Cat, parent of Cat
• Object is the base class, is the superclass of all classes.
• Each class (other than Object) has exactly one superclass. This is single inheritance. Other languages have multiple inheritance.
• So all Java classes form a Tree with Object as root.

Search for Method Names (again)

• Important Search starts at the class of the instance and moves up towards Object. If I call my friend, who is a Doctor, they answer Dr. Smith, even though I may have placed them in the friend section of my phone book.
• To start search at the superclass (parent) use super.method()
• To use super class (parents) constructor use super(arguments)
• You can not directly access super super class things

Search for Variables (again)

• Important Search starts at the method that is executing and moves up towards Object. It does not care which class the method is executing on.
• To start search at the super class (parent) use super.variable
• You can not directly access super super class things

Overriding and Shadowing

• Overriding: same method name and signature exists in subclass
• Prevent overriding of method by declaring it final
• Shadowing: same variable name and type exists in subclass

Abstract Classes

• contains abstract methods that are NOT implemented
• may also contain implemented methods
• may contain variables
• CANNOT be instantiated , because it is not "concrete".
• A class can extend (inherit from) an abstract class and implement the abstract methods, then CAN be instantiated.
• A child class of an abstract class can still be abstract.
• Example: public abstract class Shape { public abstract double getArea(); public abstract double getPerimeter(); }

Who Inherits from Whom?

On stack overflow

UML

• Unified Modeling Language (UML) allows us to express the design of a program before writing any code.
• It is language-independent.
• An extremely expressive language.
• We will use only a small part of the language, Class Diagrams, to represent basic OO design.

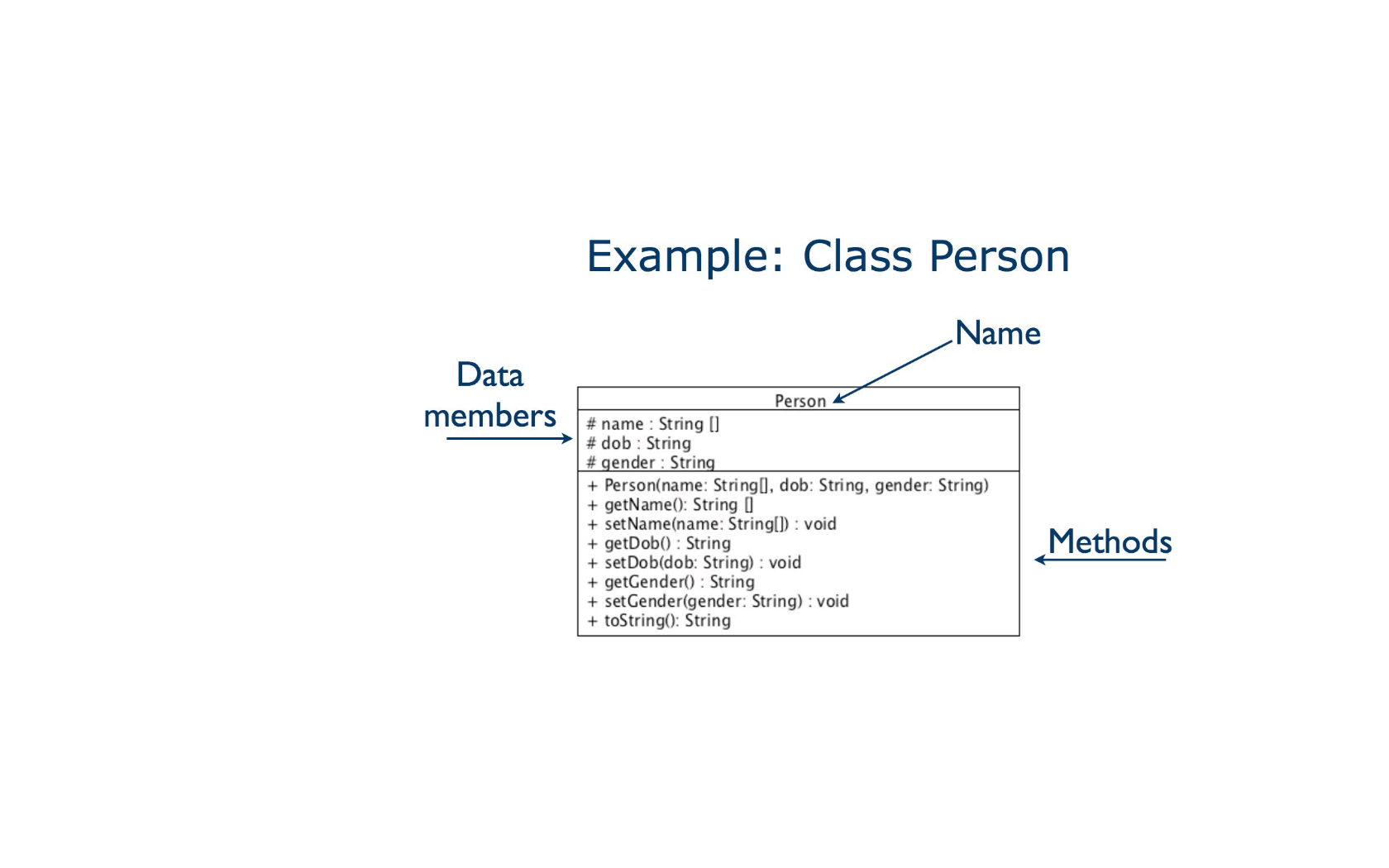

UML Class Notation

• Methods have name and parameter types
• Visibility: + public - private # protected ~ package
• Different types of classes: Regular class: A Interface: <<interface>> A Abstract class: <<abstract>> A
• Static: underline
• Arrows:
  • Extends:
  • Implements:
  • Association:
  • Dependency:

  The difference between the Dependency arrow and Association arrow in a UML diagram? Association is for when an instance itself holds onto a reference to another class. Dependency is when some method is handed an instance of the other class to temporarily communicate with, or when a method creates an instance of the other class. So the idea is that the connection to the other class is temporary. See, for example this or this.
• What should I be able to do? Understand the language of Design Patterns as in
  • The Structure sections of These Design Patterns.

    From: Observer.
  • The UML Class Diagram sections of These Design Patterns.
